CE EMARK nylon 12-48V manual adjustable 97dB 107dB output car
reverse horn
General specifications:
| Output level | 97dB or 107dB ± 4dB at 1.2M |
| Voltage | 12-48VDC |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree C |
| Frequency | 1400Hz ± 10% |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 355g ± 10% |
| Dimensions | 129*69*74mm |
Applications:
For cars, trucks, construction machinery, with 12V to 48VDC system,
made for heavy duty applications in medium or high noise area.
With 3 wires, have 2 different outputs which is 97 and 107dB, you
can wire to have the output you need.
Main features:
Manual adjustable
Reinforced nylon housing
IP68 waterproof speaker, epoxy ensamsulated PCB
Polarity protected
Easy to install with universal mounting
Long warranty 2 year warranty
SAE TYPE B & SAE TYPE C
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B41 | 12-48V | 97 or 107dB | |
| YS-B43 | 12-48V | 107dB | bespoken message available |
| YS-B44 | 12-48V | 112dB | |
Quick details for all series alarms
| Series | Size | Sound | Remark |
| B00 | 127*70*73.5mm | beep sound | intelligent models available |
| B10 | dia 60*46.3mm | beep sound | |
| B20 | 103.5*40.5*71mm | beep, white noise, bespoken message | intelligent models available |
| B30 | 103*44.5*68mm | beep, white noise, bespoken message | intelligent models available |
| B40 | 129*69*74mm | beep sound, bespoken message | manual adjustable available |
| B50 | 102*44.5*69.5mm | beep, white noise, bespoken message | intelligent models available |
| B60 | 127*95*77mm | beep, white noise, bespoken message | intelligent models available |
| B70 | 127.5*79*82mm | beep, white noise, bespoken message | models with night mode available |
| B80 S | 105*71.8*70mm | beep, white noise, bespoken message | models with night mode available |
| B80 L | 130*76*88mm | beep, white noise, bespoken message | models with night mode available |
| BJ | 58*30*59.5mm | beep, white noise, bespoken message | |
| B90 | | beep, white noise, bespoken message | models with night mode available |
More information about the alarm:

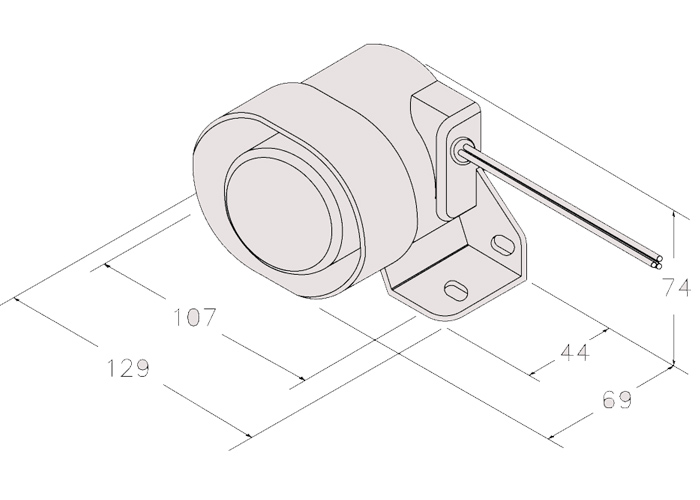

Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests,
reliabity tests, to make sure alarms well designed, will work well
as we design it.
feel free to let me know if you want to know more about our
products and factory.
