    40mm Bluetooth Raw Audio Speakers Small Smart Mini Raw Driver Unit

    Ask Lasest Price
    Brand Name : Yuesonic
    Model Number : YD40-40
    Certification : CE,RoHS,REACH
    Price : Basicly USD 0.1~1.5
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 30000pcs per month
    Delivery Time : 2~4weeks
    • Product Details
    • Company Profile

    40mm Bluetooth Raw Audio Speakers Small Smart Mini Raw Driver Unit

    40mm bluetooth speaker small smart mini high qualtity CE SGS RoHS raw driver unit


    1. Specifications

    Sound pressure84±2(A)AT 1m/1w
    VOICE COLL IMP
    RESONANT FREQ400±20% HZ
    Temperature-25°C ~ 55°C
    RATED POWER4W
    MAX POWER6W
    Weight48g

    2. Description



    NO.


    ITEM


    SPECIFICATION


    TESTING CONDITION

    1

    NOMINAL SIZE

    40.1X40.1 MM
    2

    VOICE COLL IMP

    8Ω ±15%AT 1.0KHz 1V
    3

    RESONANT FREQ

    Fo 400±20% HZAT 1.0V
    4

    OUTPUT S.P.L

    MEAN VALUE

    AT0.5, 0.6,0.8,1.0 KHz

    84±2dB

    AT 0.5m /1w

    MEASUREMENT

    5

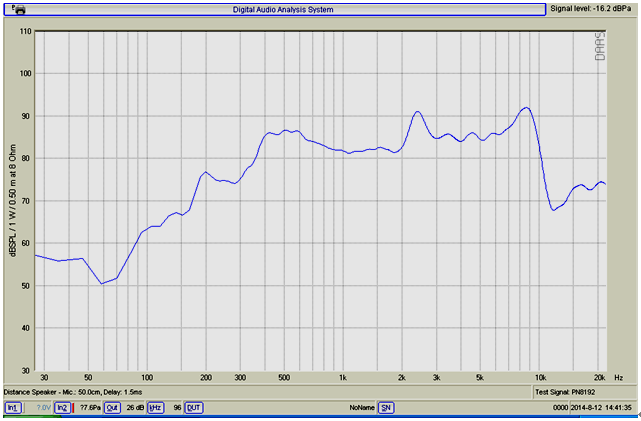

    FREQ RESPONSE

    fo ~ 10 K Hz -10dB

    -10dB

    6

    RATED POWER

    4.0 W
    7

    MAX POWER

    6.0 W
    8

    OPEARTION


    MUST BE NORMAL

    PROGRAM SOURCE 4.0 W
    9

    NOISE


    MUST BE NORMAL

    SINE WAVE 5.66 V
    10

    HEAT TEST

    AFTER TEST MEET ITEM 8,955± 2℃ 16 HOURS
    11

    HUMIDITY TEST

    AFTER TEST MEET ITEM 8,9

    40±2℃

    90~95%RH 48 HOURS

    12

    LOAD TEST

    AFTER TEST MEET ITEM 8,94.0 W 96 HOURS
    13

    MAGNET

    Ф24X3.5 (N38SH) NdFeB

    MATERIAL SIZE

    14

    TOTAL FLUX

    MAX WELL
    15

    POLARIZATION

    When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward

    16

    NET WEIGHT

    48g

    3.Applications

    Speakers are typically housed in a speaker enclosure or speaker cabinet which is often a rectangular square box made of several forms of wood, or sometimes plastic. The enclosure's materials and design play an important role in the quality of the sound. The enclosure generally must be as stiff and non-resonant as practically possible. Where high fidelity reproduction of sound is required, multiple loudspeaker transducers are often mounted in the same enclosure, each reproducing a part of the audible frequency range (picture at right). In this case the individual speakers are referred to as "drivers" and the entire unit is called a loudspeaker. Drivers made for reproducing high audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers, and those for low frequencies are called woofers. Extremely low frequencies (16Hz-~100Hz) may be reproduced by detached subwoofers. Smaller loudspeakers are found in devices such as radios, televisions, portable audio players, computers, and electronic musical instruments. Larger loudspeaker systems are used for music, sound reinforcement in theatres and concert halls, and in public address systems.


    4. Competitive Advantage

    1). Reinforced nylong housing eliminates corrosion damage

    2). Wire/connector/bolt mounting optional, easy to install

    3). Voltage polarity protection

    4). RoHS compliant, CE certified, SGS


    5. Information

    Place of Origin:China
    Brand Name:Yuesonic
    Certification:CE/RoHS/SGS
    Model Number:YD40-40

    6. Custom properties

    Product Name:SpeakerApplication:Outdoor
    Weight:48gSound:Music
    Material:MetalPower:4W
    Standard:CE/ROHS/SGSType:Parts

    7. Product commercial terms

    Minimum Order Quantity:2000pcs
    Price:negotiation
    Packaging Details:T/T or western Union
    Delivery Time:3,0000pcs per month
    Payment Terms:14~28 working days after received your payment
    Supply Ability:Packed in box firstly,and then reinforced with neutral packaging for outer packing
