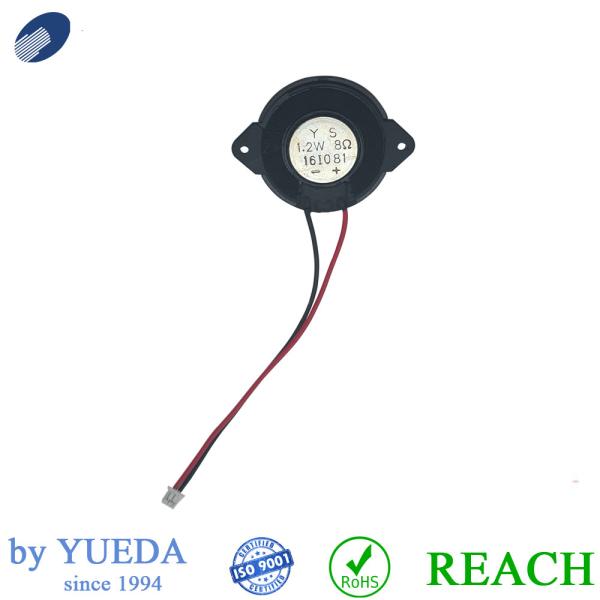

    Black Round Box Speaker Precision Device 2W 8ohm 32mm Lightweight

    Ask Lasest Price
    Brand Name : Yuesonic
    Model Number : YD32-8B-L80
    Certification : CE
    Price : Basicly USD 0.1~1.5
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 30000pcs per month
    Delivery Time : 2~4weeks
    • Product Details
    • Company Profile

    Black Round Box Speaker Precision Device 2W 8ohm 32mm Lightweight

    2W 8ohm 32mm black round speaker with wire high qualtity music car banner CE RoHS

    1. Specifications

    Sound pressure78±2(A)AT 1m/1w
    VOICE COLL IMP
    RESONANT FREQ570±20% HZ
    Temperature-25°C ~ 55°C
    RATED POWER1.2W
    MAX POWER2W
    Weight10.2g

    2. Description



    NO.


    ITEM


    SPECIFICATION


    TESTING CONDITION

    1

    NOMINAL SIZE

    φ32 MM
    2

    VOICE COLL IMP

    8 Ohm ±15%
    3

    RESONANT FREQ

    fo 570 ±20% HZ
    4

    OUTPUT S.P.L

    78±2dBAT 1m/1w MEASUREMENT
    5

    FREQ RESPONSE

    fo~ 20 K Hz -10dB-10dB
    6

    RATED POWER

    1.2 W
    7

    MAX POWER

    2 W
    8

    DISTORTION

    7 %Max
    9

    OPEARTION


    MUST BE NORMAL

    PROGRAM SOURCE 1.2 W
    10

    NOISE


    MUST BE NORMAL

    SIN WAVE 3.1 V
    11

    HEAT TEST

    AFTER TEST MEET ITEM 8,955± 2℃ 16 HOURS
    12

    HUMIDITY TEST

    AFTER TEST MEET ITEM 8,9

    40±2℃

    90~95%RH 48 HOURS

    13

    LOAD TEST

    AFTER TEST MEET ITEM 8,91.2 W 100 HOURS
    14

    MAGNET

    φ12.5*1.5

    MATERIAL SIZE

    15

    TOTAL FLUX

    MAX WELL
    16

    FLUX DENSITY

    GAUSS
    17

    POLARIZATION


    18

    NET WEIGHT

    10.2g



    3. Applications

    Speakers are typically housed in a speaker enclosure or speaker cabinet which is often a rectangular square box made of several forms of wood, or sometimes plastic. The enclosure's materials and design play an important role in the quality of the sound. The enclosure generally must be as stiff and non-resonant as practically possible. Where high fidelity reproduction of sound is required, multiple loudspeaker transducers are often mounted in the same enclosure, each reproducing a part of the audible frequency range (picture at right). In this case the individual speakers are referred to as "drivers" and the entire unit is called a loudspeaker. Drivers made for reproducing high audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers, and those for low frequencies are called woofers. Extremely low frequencies (16Hz-~100Hz) may be reproduced by detached subwoofers. Smaller loudspeakers are found in devices such as radios, televisions, portable audio players, computers, and electronic musical instruments. Larger loudspeaker systems are used for music, sound reinforcement in theatres and concert halls, and in public address systems.


    4. Competitive Advantage

    1). Reinforced nylong housing eliminates corrosion damage

    2). Wire/connector/bolt mounting optional, easy to install

    3). Voltage polarity protection

    4). RoHS compliant, CE certified, SGS


    5. Information

    Place of Origin:China
    Brand Name:Yuesonic
    Certification:CE/RoHS/SGS
    Model Number:YD78-1N

    6. Custom properties

    Product Name:SpeakerApplication:Outdoor
    Weight:257gSound:HIFI
    Material:MetalPower:15W
    Standard:CE/ROHS/SGSType:Line array

    7. Product commercial terms

    Minimum Order Quantity:2000pcs
    Price:negotiation
    Packaging Details:T/T or western Union
    Delivery Time:3,0000pcs per month
    Payment Terms:14~28 working days after received your payment
    Supply Ability:Packed in box firstly,and then reinforced with neutral packaging for outer packing
