YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

Ask Lasest Price
Brand Name :	YUESEN
Model Number :	YD36-24-8L36
Certification :	ISO2000, RoHS, REACH
Price :	$0.6/pcs
Payment Terms :	T/T, Western Union
Supply Ability :	1-1.5million/month
Delivery Time :	2-4 weeks

Add to Cart

Product Details
Company Profile

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.

General Specifications:

Dimensions	36mm
Rated Input Power	1W
Maximum Input Power	1.5W
Sound Pressure Level	92±3dB 0.1M/0.1W at 0.8,1.0,1.2,1.5KHz Average (0dB SPL=20μPa)
Impedance	8Ω±1.2Ω(at 1.5kHz, 1.5V)
Frequency Response	400Hz~5.0kHz(-10dB)
Lower Resonance Frequency	600Hz±100Hz at 1.0V
Distortion Factor	Not exceed 5% (at 1kHz, Input:1W)
Operation	It shall be normal. Input Power: 2.83V of 300-500Hz sine wave.
Polarity	When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward
Reliable Test	Sensitivity difference shall be within 2dB and should be normal after test.
Load Test	Shall be normal after test. Input Power: 1.0W (2.83V) White Noise Duration: 96 hours
Humidity Test	Shall be normal after test. Temperature: 40℃ Relative Humidity: 90~96% Duration: 96 hours
High Temperature Test	Shall be normal after test. Temperature: 65℃ Duartion: 96 hours
Cold Temperature Test	Shall be normal after test. Temperature: -2.℃ Duartion: 96 hours
Thermal Shock Test	a) High Temperature: 60℃ Low Temperature: -20℃ b) Number Of Cycles: 5 cycles c) Duration Of Exposure: 2 hours at each temp d) Duration Of Recovery: 1 hour
Vibration Test	Shall be normal after test. Amplitude: 1.5mm Frequency: 10~55Hz Sweep Time: 1 minute Axes: 3 axes Duration: 2 hours on each axes
Drop Test	1.5m 12 cycles

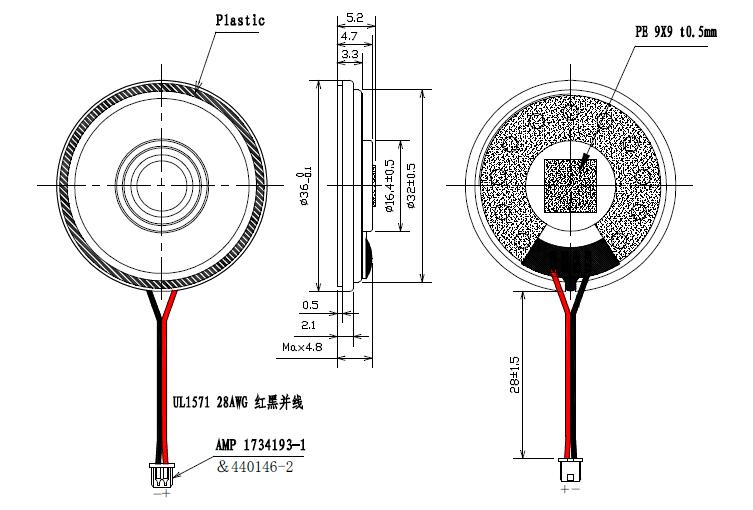

Drawing:

Product Processing:
