50 mm full range 5 watt metal frame flange mounted multimedia
speaker raw audio speakers
General specifications:
| Impedance | 8 ohm |
| Rated power | 5 watt |
| Max. power | 7 watt |
| SPL sound pressure level | 80± 3dB 1M/1W |
| Fo Lower resonance frequency | 200Hz ± 20% |
| Frequency reponse | Fo - 20kHz |
| Material | Metal frame |
| Magnet | NdFeB |
| weight | g |
| Dimensions | 74.4*39.5 mm |
Applications:
Used for waterproof intercoms, and similar devices which are used
in touch conditions.
Could also be use for multimedia devices, car electronics, smart
home appliances, and IOT devices which need to play some souds more than
beep one, like vocal warning messages, or musics.
Main advantages:
Waterproof Could be used for waterproof applications.
RoHs and REACH COMPLIANT All our spakers are RoHs and REACH conformed, vironmental friendly
Techical support Our factorry We have engaged in this field since 1994, any many
experienced engineers, some more than 20 years.
Our technical support will be available through your project which
may need some speakers.we can we can work together to improve our
speaker, or your design to make them fit better.
Production fully under control: Fully monitored from incoming materials, and 100% checked in
production, to make sure a good quality
In time after-sales: In case there is any defective, Our QC and engineers will feedback
with 8D reports with in 24 hours.
What do we make:
We also make micro mylar speakers of all sizes, mainly waterproof
ones, headphone speaker, handset spekers,and multimedia speaker for
cars, car electronics, laptops, bluetooth players, alarms,
televisions, ATMs, POS etc
Hifi speakers, line array speaker and some customized speaker could
also be made according to your specfic requiments.

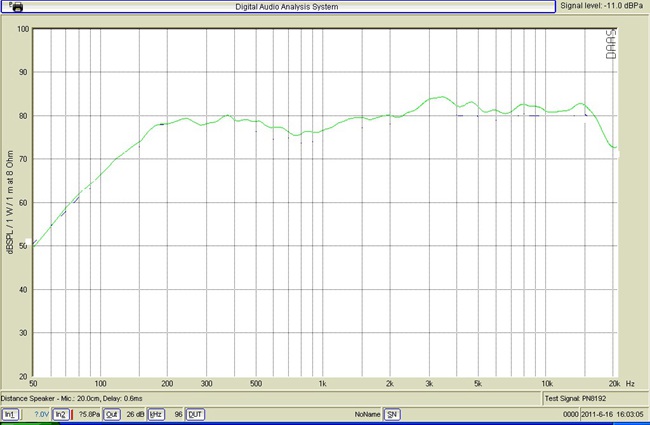

Drwaing and frequency reponse:
How we make it SPEAKRE PRODUCTION
feel free to let me know if you want to know more about our
products and factory
